Rod Hanger Assemblies
Explore our extensive product range below.
Specifications

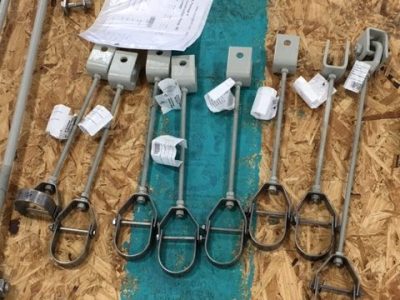

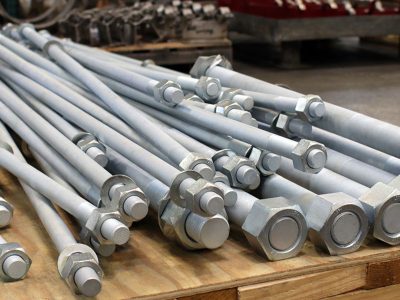

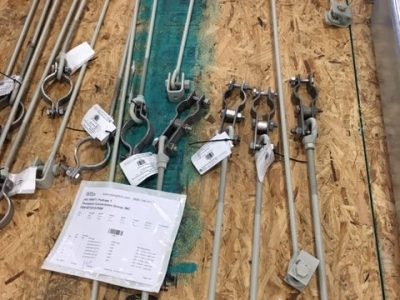

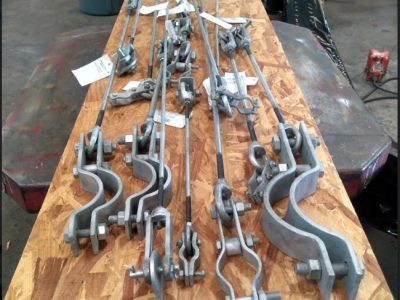

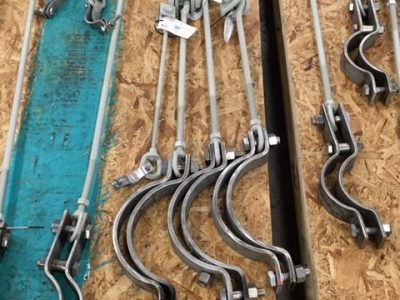

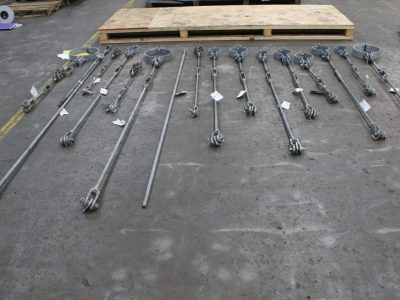

Rod hanger assemblies are round steel bars normally threaded used to connect other components, such as pipe support hardware, to make a pipe hanger assembly.
Click to enlarge
Scroll right for more >>
GENERAL DIMENSIONS & SPECIFICATIONS
TYPES OF ROD HANGER ASSEMBLIES
TYPES OF ROD HANGER ASSEMBLIES
FIG. 35: ROD COUPLING – STRAIGHT WITH SITE HOLE
MATERIAL: Carbon steel
FINISH: Black
SERVICE: Used for connecting two rods together of the same diameter.
ORDERING: Specify figure number, rod size, and description.

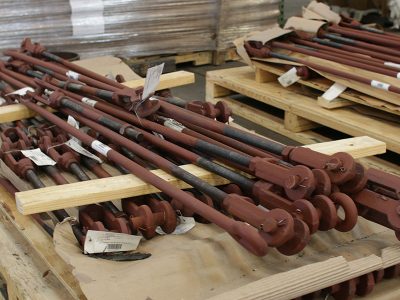

FIG. 110: EYE ROD (WELDED)
SIZE RANGE: Welded eye rods are furnished in any length specified. Eye rods will be furnished in other than standard lengths and with other than standard length thread when required and so ordered.
MATERIAL: Carbon steel
FEATURES: Through 1 ½”, inside diameter of eye will accommodate a bolt diameter 1/8” larger than rod diameter, 1 3/4” and larger inside diameter of eye will take a bolt of 1/4” larger than rod diameter.
MAX TEMP.: 750°F
ORDERING: Specify figure number, rod length, and diameter, description and finish.
FIG. 120: EYE ROD (NOT WELDED)
SIZE RANGE: Not welded Eye Rods are stocked in all sizes in the following standard lengths: 8”, 10”, 12”, 14”, 18”, 24”, 30”, 36”, 42”, 48”, 54”, 60”, 66” and 72”. Eye rods will be furnished in other than standard lengths and with other than standard length thread when so ordered.
MATERIAL: Mild Steel & Carbon Steel
FEATURES: For 1 ½” rod, the inside eye diameter will accommodate a bolt with a diameter 1/8” larger than the rod diameter. For 1 3/4” or larger rods, the inside eye diameter will accommodate a bolt with a diameter of 1/4” larger than rod diameter.
MAX TEMP.: 650°F
ORDERING: Specify figure number, rod length, and diameter, description and finish.
FIG. 122: ALL THREADED ROD
MATERIAL: Mild Steel & Carbon Steel
FINISH: Black, painted, or hot-dipped galvanized.
SERVICE: For use as support rods where a universal connection is required to allow piping movement.
ORDERING: Specify figure number, rod length, and diameter, description and finish.
FIG. 126 & 127: LINKED EYE ROD
MATERIAL: Mild Steel & Carbon Steel
FINISH: Black, painted, or hot-dipped galvanized
SERVICE: For use as support rods where a universal connection is required to allow piping movement.
ORDERING: Specify figure number, rod size and length, thread length and diameter and finish.
FIG. 128 & 129: HANGER ROD
Fig. 128 –Hanger Rod (Both Ends R.H. Thread) Fig. 129 – Hanger Rod (One End R.H. & Other End L.H.)
MATERIAL: Mild Steel & Carbon Steel
FINISH: Black or galvanized
SIZE RANGE: Figure 128 and 129 hanger rod are both ends and standard lengths of 8”, 10”, 12”, 14”, 18”, 24”, 30”, 36”, 42”, 48”, 54”, 60”, 66” and 72”. Hanger rods are available in sizes other than standard lengths or standard thread lengths.
ORDERING: Specify figure number, rod size, and length, thread length and diameter, description and finish.
